KWO55-30
Outdoor Digital Advertising Signage
55inch LCD Screen
High Brightness: 3000Nits
IP65
Android OS / Windows OS / TV Board
FHD 1920x1080
Features

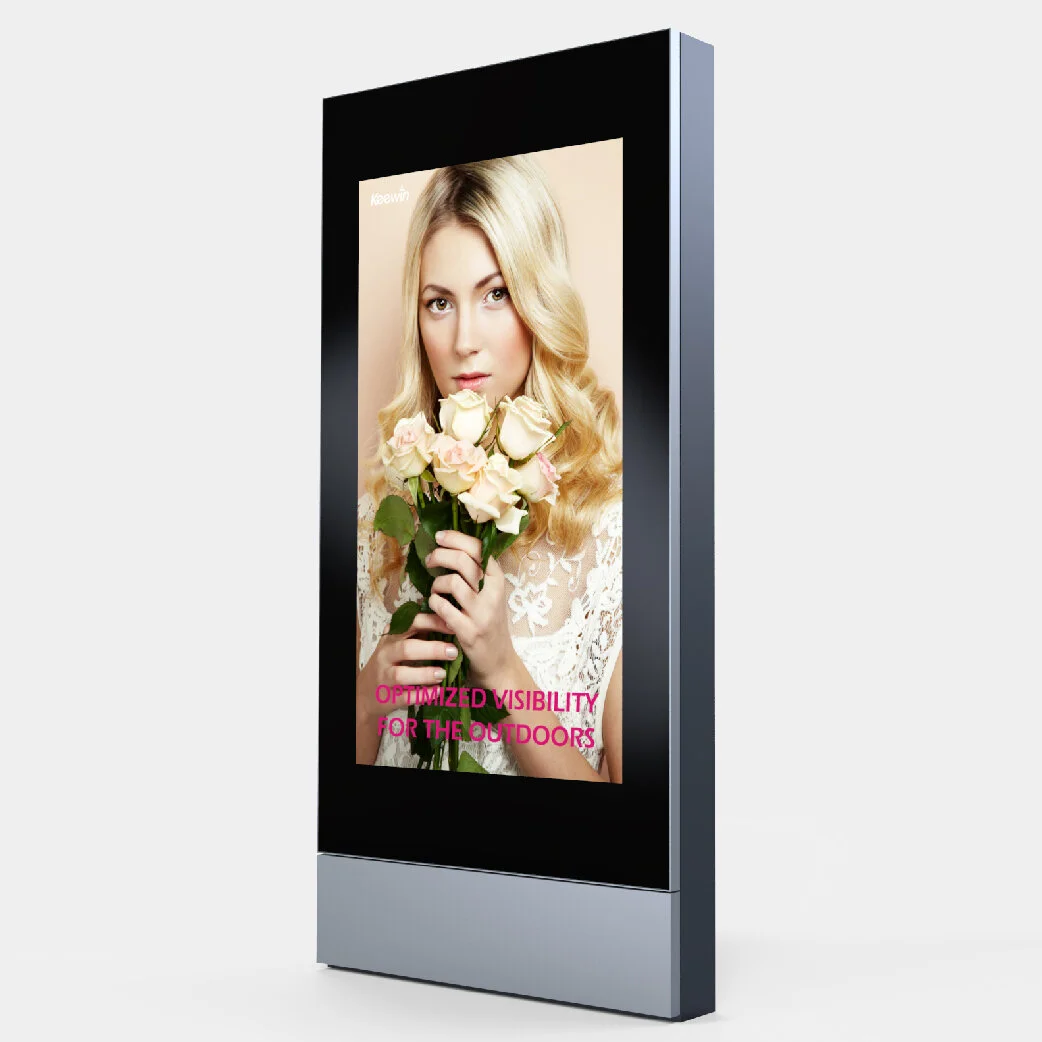

Keewin's IP65 outdoor free-standing LCD kiosks are available in both single and Dual side displays. These aluminum-framed units add a modern touch to any location and also feature silky printing glass to make it look morden and cut-edging, and also make the advertising contents more fashionable.
Outdoor Dual Side Digital LCD Kiosk
High Brightness: 3000 nits (Truly Sunlight Readable)
IP Rating: IP 65
High Brightness
3000 nits
Truly Sunlight Readable
All in One Solutions
High Brightness LCD Screen
PC / Android / TV Board
DIY Outer Casing
Weatherproof Technology
Its fully-enclosed design allows for 24/7 outdoor use,
with additional customizable sizing available.
TECH SPECS
| Model | KWO55-30 |
| Size | 55 |
| Panel | |
| Panel Size (inch) | 55 |
| LCD Manufacturer | LG / Samsung / AUO / Keewin / BOE |
| Active Display Area (h x w mm) | 1210 x 680 |
| Resolution (pixel) | 1920 x 1080 |
| Aspect Ratio | 16 : 9 |
| Brightness (nits) | 3000 |
| Contrast Ratio | 4000 : 1 |
| Grey to Grey Response Time (ms) | 6 ms |
| Viewing Angle (H/V) | 178°/178° |
| Backlight Configuration | LED light |
| Operational Life Cycle-mtbf (hours) | 50000 |
| Power | |
| Input Voltage | AC220/110 V ± 10%, 50 / 60 HZ |
| Leakage Protection | 30mA/0.1S |
| Input Voltage | AC220 / 110V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | 460 |
| Enclosure Material | |
| IP Rating | IP65 |
| Enclosure Material | Galvanized steel + zinc powder coating + fine grain powder triple coating |
| Glass Type | Tempered glass with AR coating |
| Glass Characteristics | Transmissivity > 93%, Reflectivity < 2% |
| Unit Dimension (w x h x d mm) | 920 x 2070 x 160 |
| Bezel Width (mm) | 120 |
| Weight (kg) | 205 |
| Environment | |
| Operating Environment | Outdoor |
| Operating Temp. | -40℃ ～+50℃ |
| Operating Humidity | 5% ~ 98% |
| Operating Altitude (m) | ≤ 2000 |
| Media & Connectivity | |
| Option | Windows / Android / TV Board |
| Wifi | |
| 4G /3G | |
| Touch Screen | |
