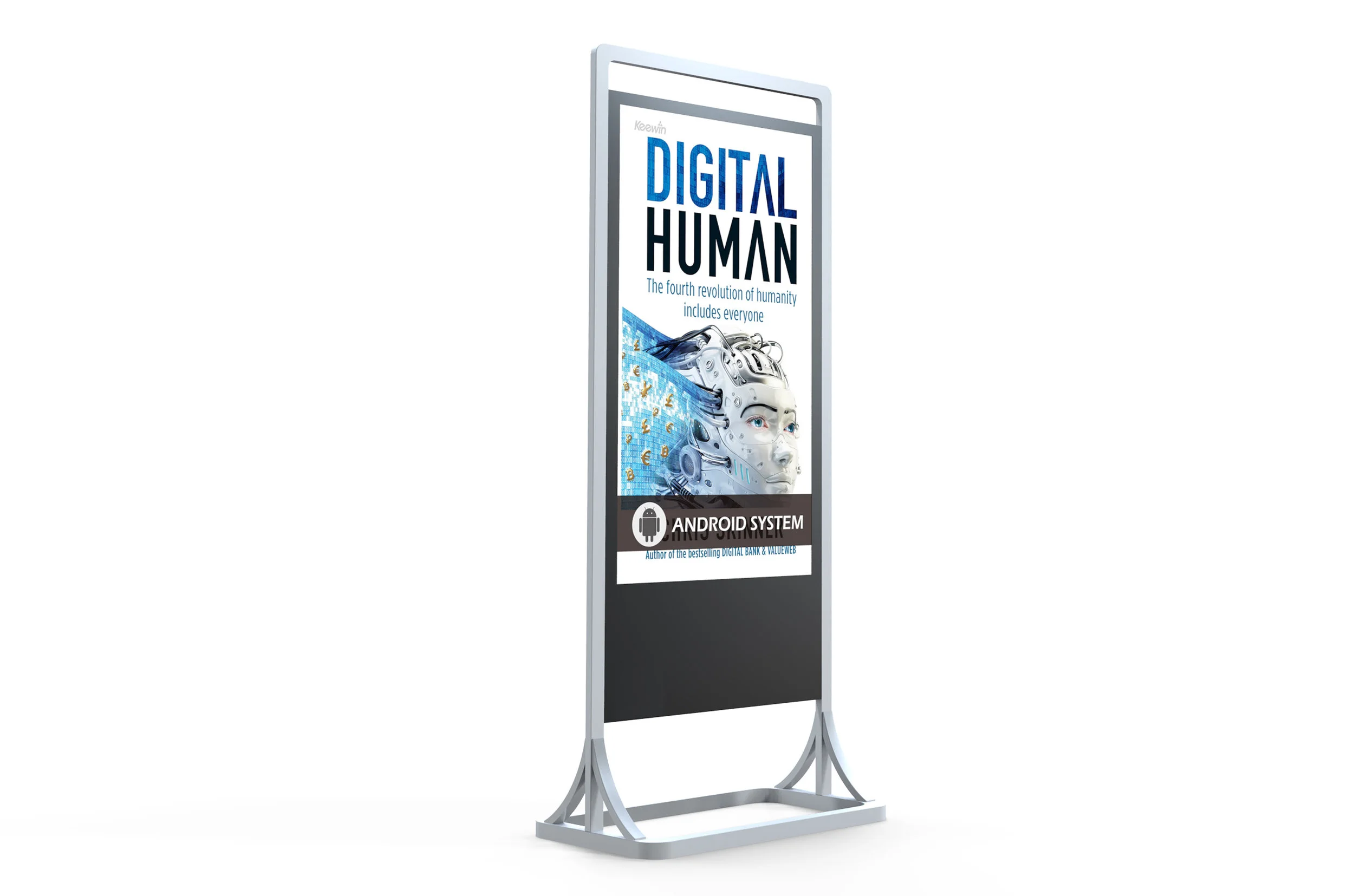

Full HD Dual Sided Ultra Thin Floor Standing Digital Signage

two displays, back to back, 22mm thickness.

Double Sided，700 -700 nits

Android System, PC System (option)

Double Sided Digital Sign Features

Super Silm 22mm

TECH SPECS

Double Sided Digital Signage

PANEL

Panel Size : 43” / 55”

LCD Manufacturer : LG / Samsung / AUO / SHARP

Active Display Area (mm) : 941 x 529 / 1210 x 680

Resolution : 1920 X 1080

Brightness (nits) : 700 & 700

Contrast :  1100:1

Backlight : Edge light type WLED

Refresh Rate (ms): 6

Viewing angle  : 89 / 89 / 89

Service Life (hours) : 30K ( Typ. )

Media & Connectivity

System : Android 5.1

CPU : RK3288

DDR : 2G

NAND : 8G

WIFI : Yes

LAN : Yes

USB : x 2

Remote Server : Update content wireless through the web

4G / 3G : Option

Auto Standby : Automated on / off timing by day, week, hour

POWER & ENVIRNMENT

Input Voltage : AC220V/110V±10%,50/60HZ

Max Power Consumption(w) : 150 / 252

Operating Environment : Indoor

Operating Temp. : 0℃ ～ +40℃

Operating Humidity : 10% ～ 80%

Operating Altitude ( m ) : ≤ 2000

Net Weight ( kg ) : TBD

PHYSICAL SPECIFICATIONS

Full Body Dimension(h x w x d  mm) :  1,850 x 720 x 22 (43") / 2,000 x 825 x 22 (55”)
